Web

Technologies 2021

{
  "name": "Alexandru Păvăloi",
  "nickname": "Păvă",
  "age": 26,
  "labPage": "iampava.com/web-technologies",
  "slides": "iampava.com/slides/web-technologies-2021",
  "email": "pava@iampava.com"
}

{ about you }

👨‍🎓👩‍🎓

🔥 TW 🔥

Official Lab Page

Official Course Page

✔ HTML

✔ CSS

✔ JavaScript

{

By the end of the course you:

🔥 will have acquired confidence to start basic Web projects on your own

🚀 will have worked on a personal project which showcases your skills

🎈 will have worked with multiple colleagues and thus grow your team-work skills

📝 will have learned the fundamentals of the Web

in order to make the most out of this:

📝 you'll have to do a lot of learning outside lab hours

❓ ask questions whenever something is unclear

👨‍💻 you'll have to do a lot of coding -> that's why we have the "homework" exercises

⭐ Projects will be published soon on https://iampava.com/web-technologies ➡ teams of 2 or 3

⭐ If you don't like any of them, feel free to submit one yourselves

⭐ Read more about the projects & evaluation here: https://profs.info.uaic.ro/~busaco/teach/courses/web/

VS Code

Firefox

glitch.com

codepen.io

Tools

🔗 devdrive.io

Every week I'll post in-advance exercises for the next lab!

OK, let's do this!

😎 An open platform

🔨 for building apps, games & awesomeness

🔗 Shareable with just a link

The Web

{ DEMO }

⭐ JavaScript

⭐ PhP

⭐ C#

...

usually a browser, but not always!

client ↔ server

built in pretty much any language we can think of

let's inspect the network traffic of a public website

HTML ▶

This

<img src="...">

<p> Lorem ipsum...</p>

Self-closing

Needs a closing tag!

Elements/tags

<img src="/bob.png">

<p>
  Hi!
  <img src="bob.png">
</p>

Elements can have attributes

Or contain other elements

<button
    data-speed="1"
    type="button"
>
  1x
</button>

... or custom attributes!

<!DOCTYPE html>
<html>
  <head>
    <!-- ... -->
  </head>

  <body>
    <!--  ...  -->
  </body>
</html>

structure of any html page

HEAD

Elements that describe our website or links to other resources.

<title> FrontEnd.ro </title>

<meta
  name="description"
  content="Învață FrontEnd"
/>

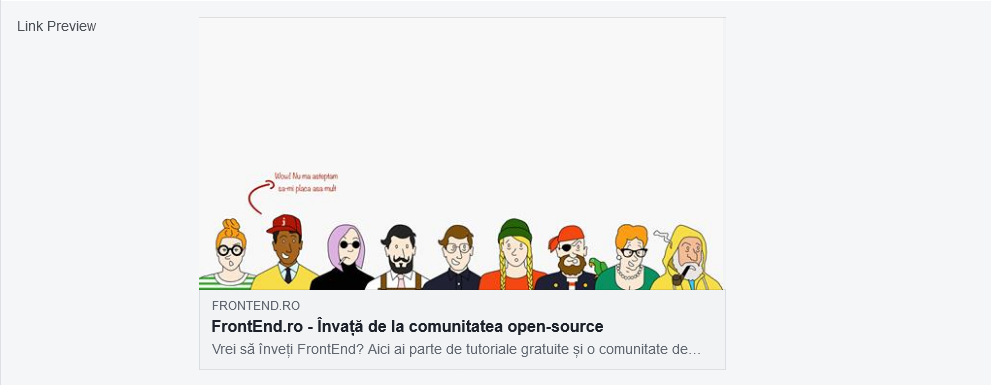

<meta property="og:image" content="https://frontend.ro/main-seo-image.jpg" />
<meta property="og:image:type" content="image/jpeg" />
<meta property="og:image:width" content="1200" />
<meta property="og:image:height" content="630" />

https://developers.facebook.com/tools/debug/?q=frontend.ro

<link rel="stylsheet" href="/style.css" />

and others...

body

Elements that are part of the page and with which the user can interact with. This means most HTML elements

⭐ Containers

header, main, footer, aside, section, div, ul, li

* most used elements

⭐ Text

h1, h2, h3, p, span, strong, pre, code

⭐ Media

img, picture, video, audio

⭐ Forms

form, label, input, select, textarea

⭐ Actions

a, button

Let's code!

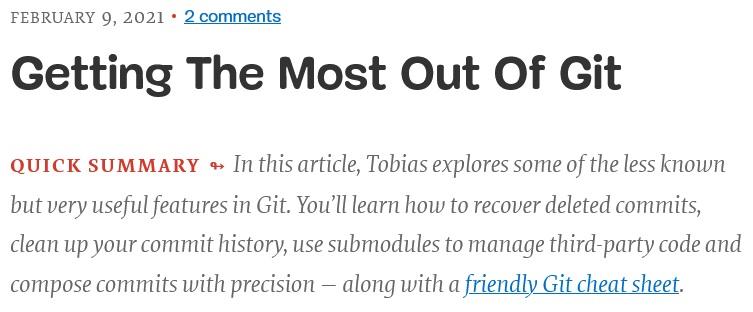

https://www.smashingmagazine.com/2021/02/getting-the-most-out-of-git/

html best practices

⭐ Organizing most web pages

<header>

<main>

<footer>

<aside>

⭐ If there's an <img>, let there be an alt

<img src="/images/avatar.png"
     alt="Bob's avatar" />

⭐ If it takes you to another page it's an anchor

<a href="/settings"> Settings </a>

⭐ If it does something when clicking it, it's a button

<button type="button">
  Save progress
</button>

⭐ Always put labels on inputs

<label>
  <span> Email or username*</span>
  <input type="text" name="emailOrUsername">
</label>

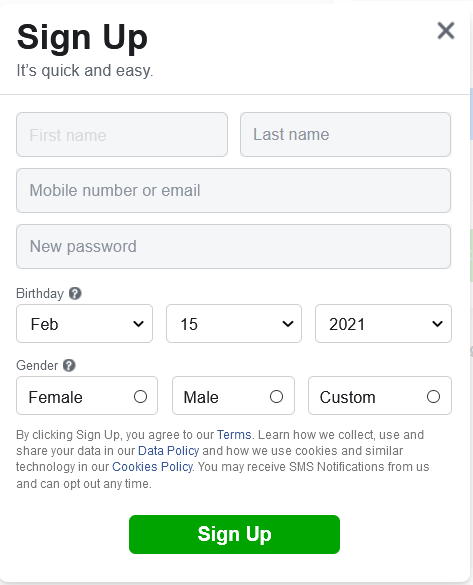

⭐ If there's an input, there should be a form

⭐ Aaaand, if there's a form ➡ add a submit input/button

<form>
  <label>
    <span> Email or username*</span>
    <input type="text" name="emailOrUsername">
  </label>
  <button type="submit"> Login </button>
</form>

⭐ Keep HTML as minimalist as possible! NO, REALLY!

Any other best practices you'd like to share?

Let's code!

#1

#2

#3

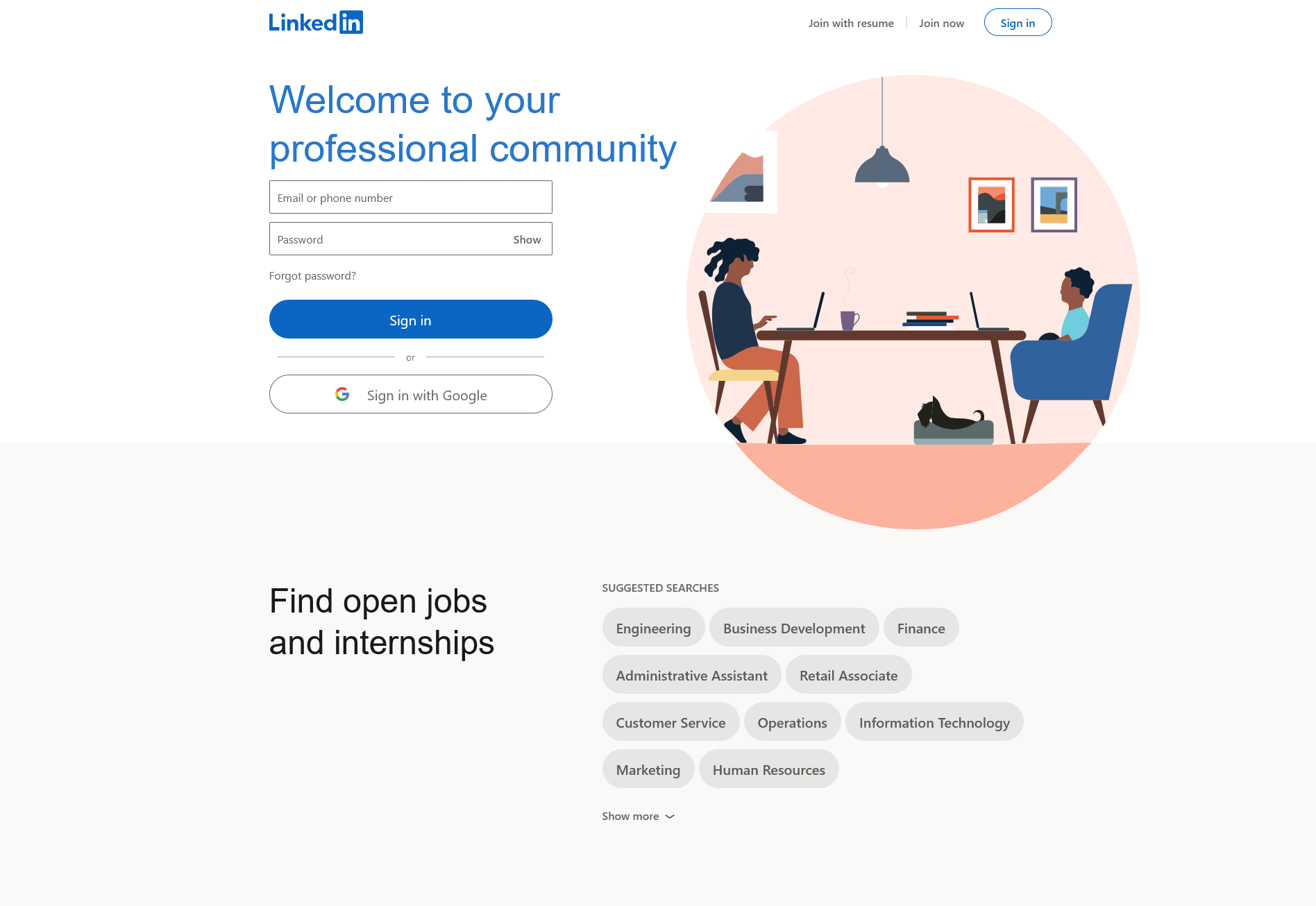

🔗 https://linkedin.com

THANKS 🙏

iampava.com/web-technologies

PS: check DevDrive over the weekend for practice exercises

💔 css 💖

Week #2

To be honest...

sometimes css is a pain in the a**

but it can also be 😍

First things first!

border: 5px solid black;

background: blue;

value

property

units

⭐ percentage (%)

⭐ vh/vw

⭐ em

⭐ rem

⭐ px

...

Try to avoid fixel px dimensions whenever

My favorite ❤

Where do we put it?

#1 inline

<p style="font-weight: bold">
    A simple styled paragraph...
</p>

👎 Avoid this at all* times

* most

#2 same file

<html>
 <head>
   <style>
    h1 {
        text-align: center;
    }
   </style>
 </head>
 <body>
   <h1> Smth </h1>
 </body>
</html>

👎 Avoid this at all* times

* most

#3 External

<!--  index.html -->
<html>
 <head>
   <link rel="stylesheet" href="./style.css">
 </head>
 <body>
   <h1> Smth </h1>
 </body>
</html>

/* style.css */
h1 {
  text-align: center;
}

👍 Do this at all* times

* most

@media screen and (max-width: 500px) {
  nav {
    background: blue;
    border: 5px solid black;
  }
}

@media screen and (orientation: landscape) {
  nav {
     width: 100%;
  }
}

Based on device

@media (prefers-color-scheme: dark) {
  body { background: black; }

  h1, h2, h3 {
	color: #fff;
  }
}

@media (prefers-color-scheme: dark) {
  header,
  footer,
  main {
	color: #fff;
    background: #000;
  }
}

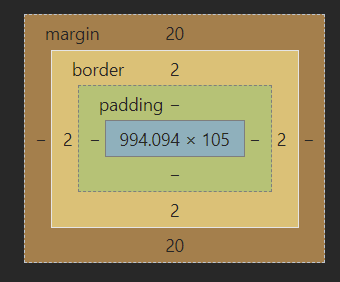

everything is a box (rect)

Elements Tab / DEMO

Display

Determines weather it's block or inline and the inner layout for it's children.

block

inline-block

inline

all the available width. Next element will come below

just the width it needs. Next element comes inline

just like inline-block, only that width/height have no effect

FLEX

the go-to method for semi-complex layouts.

⭐ Make sure you LEARN & USE IT in the project!

Position

Where to "position" an element inside the our Website.

Static

Default position of all elements.

⭐ from Top to Bottom

⭐ from Left to Right

absolute

Position it based on some parent's/ancestor's position

The first one with a position other than static

{
  top: 1em;
  right: 10%;
  bottom: 20px;
  left: 2vh;
}

relative

Position it relative to it's default static position

#1 Slightly adjust it's position by a couple of units

#2 To absolute position children according to itself

Usecases

fixed

Position it based on the viewport or the first ancestor with a transform property.

Scroll to top button on blogs

Fixed side content, ads, etc

Usecases

{
  transform: scale(1.5);
  /*   transform: rotate(10deg); */
  /*   transform: translateX(5em); */
  /*   ... */
}

Sticky

Default (static) position until the scroll reaches it. Then it sticks!

{ DEMO }

⭐ position

⭐ width

⭐ height

⭐ border

Use only those props:

⭐ top/right/bottom/left

#0

#1

Extra prop: "transform"

#2

Extra prop: "transform"

#3

<p>
 Text
 <span> Help info </span>
</p>

TEXT

Help info

Extra prop: "background"

#4

<main>
 <div>
    <div></div>
    <div></div>
    <div></div>
    <div></div>
    <div></div>
 </div>
</main>

*Pseudo-selector: nth-child

#5

@media screen and (max-width: 500px) {

}

THANKS 🙏

iampava.com/tw

PS: check DevDrive over the weekend for practice exercises

css #2

Week #3

FLEX ❤

flex

items

Flex Container

most common props

.gallery {
  display: flex;
  flex-flow: row wrap;
  /*  row no-wrap; column wrap; ... */

  justify-content: space-between;
  /*  space-evenly; center; ...  */

  align-items: center;
  /* space-between; space-evenly;... */
}

{ DEMO }

Selectors

Which HTML element/elements we want to style?

by tag

* {
  font-family: sans-serif;
}

h1,
h2,
h3 {
  text-align: center;
}

by class

<button type="button"> Log In </button>
<button type="button"> Register </button>
<button type="button"> Sign Out </button>

<button type="button" class="btn-round">
    Log In
</button>
<button type="button" class="btn-round">
    Register
</button>
<button type="button" class="btn-green">
  Sign Out
</button>

.btn-round {
  border-radius: 50%;
}

.btn-success {
  color: #fff;
  background: green;
}

by id

<p id="hello">
    A simple styled paragraph...
</p>

<style>
    #hello {
        font-weight: bold;
    }
</style>

It's all about how specific you are!

<img
    class="square-image round-image"
    id="profile" src="user.jpg"
    alt="user profile"/>

<style>
    img {
        border: 1px solid black;
    }

    .round-image {
        border-radius: 50%;
        border: 5px dotted red;
    }

    .square-image {
        border-radius: 0;
        border: 5px dashed green;
    }

    #profile {
        border: 2px solid blue;
}
</style>

1)#ID

2).Class

3) TagName

💥 !important

<style>

.red {
    color: red;
}

.blue {
    color: blue;
}

</style>

<p class="red blue"> Bob </p>
<p class="blue red"> Alice </p>

<style>

.red {
    color: red;
}

.blue {
    color: blue;
}

</style>

<p class="red blue"> Bob </p>
<p class="blue red"> Alice </p>

Hmmmmm...?!

some more Selectors

parent rule

.raining .human {
  /*
    "human" class elements
    inside "raining"-class  elements
  */

  display: hidden;
  position: under-blanket;/
}

& rule

.valentines.in-love {
  /*
    both "valentines" & "in-love"
    classes
  */
  text-decoration: make-up;
}

> selector

main > .card {
  /*
   * Elements with class 'card' which
   * are a direct  child of a
   * 'main' element
   */
}

BEM: Block element modifier

BEM is naming pattern to keep our CSS clean and our minds sane! 😅

blocks

Elements that make sense on their own.

eg: image gallery, login form on home page...

<body>
    <div class="gallery">

    </div>
</body>

elements

They make sense only as part of a block.

eg: image in an image gallery, form group in a form, etc

<body>
    <div class="gallery">
      <img class="gallery__image" />
    </div>
</body>

modifiers

An element or a block might have a certain state, like success, error, etc

<div class="gallery">
  <img class="gallery__image" />
  <img class="
              gallery__image
              gallery__image--downloaded
              " />
</div>

👇 Let's finally style it 👇

THANKS 🙏

iampava.com/tw

PS: check DevDrive over the weekend for practice exercises

html & css recap

Week #4

Let's discuss the projects 👇

https://iampava.com/web-technologies

Projects

<Br />

media-queries

.gallery {
  display: flex;
  flex-flow: row wrap;
}

.gallery img {
  width: 30%;
  margin-top: 1em;
  margin-bottom: 1em;
}

@media screen and (min-width: 500px) {
  .gallery img:nth-child(2) {
    margin-left: 5%;
    margin-right: 5%;
  }
}

@media screen and (max-width: 500px) and (min-width: 350px) {
  .gallery img {
    width: 45%;
  }

  .gallery img:nth-child(2n + 1) {
    margin-right: 10%;
  }
}

@media screen and (max-width: 350px) {
  .gallery img {
    width: 100%;
  }
}

Media query example

transforms

#logo {
    tranform: scale(1.1) rotate(35deg);
    transform-origin: center;
}

MDN Docs

transitions

🔴

.5 sec

#logo {
  transition: transform .5s ease-in;
}

#logo:hover {
  transform: scale(1.1);
}

property

timing
function

duration

animations

🔴

#logo {
  animation: rotate 1s linear infinite;
}

@keyframes rotate {
  0% {
    transform: rotate(0deg);
  }

  50% {
    transform: rotate(180deg);
  }

  100% {
    transform: rotate(360deg)
  }
}

iteration count

Let's CODE 👇

https://tobiasahlin.com/spinkit/

to keep in mind

⭐ Valid HTML

⭐ use flex & variable dimensions when possible

⭐ responsive design

⭐ deploy it on Github pages (bonus)

practical recommendations

✏ sketch the general outline of the website on paper (mobile first)

📍 give each "component" a unique class name so there are no collisions

👨‍💻 start small by implementing the components first

📦 notice duplicate code and extract in re-usable classes

🔁 REPEAT 👆

THANKS 🙏

iampava.com/tw

PS: check DevDrive over the weekend for practice exercises

Week #5

back-end development

Download and install XAMPP if you've chosen PHP!

🔗 Download link

php basics

⭐ we can have PHP only files or mix them with HTML for inserting content into the page

<!DOCTYPE html>
<html lang="en">
<head>
    <title>PHP & HTML</title>
</head>
<body>
    <h1> Some header </h1>
    <?php
        $today = date('d/m/Y');
        echo "<h2> Today is " . $today . "</h2>";
    ?>
</body>
</html>

index.php

all variables must start with $

concatenate strings with . operator

⭐ there are no type-declarations needed when we create new variables

<?php

$name = 'Bob';
$age = 31;
$isMarried = false;

// ...

⭐ Arrays are actually key-value pairs & the keys don't necessarily have to be numbes, as we are used to

<?php

$phones = ['Bob' => 0740000000];
echo sizeof($phones); // 1

$loteryNumbers = [11, 5, 3];
$loteryNumber['smth'] = 'smth else';

echo  sizeof($loteryNumbers); // 3

foreach($loteryNumbers as $element) {
  echo $element;
}

⭐ PHP has support for OOP style programming via Classes

<?php

class Human {
	public function __construct($name, $age) {
    	$this -> name = $name;
        $this -> age = $age;
    }

    public function greet() {
    	echo 'Hello! I am ' . $this -> name . '. Nice to meet you!';
    }
}

class Programmer extends Human {
	public function __construct($name, $age, $preferedLanguage) {
        parent::__construct($name, $age);
        $this -> preferedLanguage = $preferedLanguage;
    }

    public function code() {
    	echo 'Nom nom, I am coding in ' . $this -> preferedLanguage;
    }
}

$fiiDeveloper = new Programmer('Bob', 31, 'PHP');

$fiiDeveloper -> greet();
echo '<br/>';
$fiiDeveloper -> code();
?>

reading data from forms

✅ Add a action attribute to the form specifying the path the the PHP script handling the submit

✅ Add a method attribute to the form configuring what HTTP Verb to use (usually GET or POST)

On the client

On the server

✅ Use the global arrays $_GET or $_POST to read the submitted data

✅ Add the name attribute to all inputs/textareas/selects so that the server can read their values

LET'S CODE

PHP & JSON

JSON is one of the most popular data formats out there, used frequently on the Web to exchange data from client-server. - Working with JSON

<?php
    $jsonAsText = file_get_contents("./gallery.json");
    $galleryArr = json_decode($jsonAsText);

    foreach($galleryArr as $image) {
    	echo '<div>
        	<img src="'. $image -> src. '">
            <p>'. $image -> description .'</p>
        </div>';
    }
?>

index.php

[{
    "src": "./images/barcelone.png",
    "description": "Sunset in Barcelone",
    "date": "22 June 2019"
}, {
    "src": "./images/madrid.png",
    "description": "Quiet street in Madrid",
    "date": "23 June 2019"
}]

gallery.json

LET'S CODE #1

#2

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <title>Calendar.php</title>
    <style>
        body {
            font-family: sans-serif;
        }
        li {
            margin: .5em 0;
        }
    </style>
</head>
<body>
    <?php
        include_once './calendar.class.php';

        $myCalendar = new Calendar();

        // Add next week's schedule
        $myCalendar -> add('04 Apr 2021', '09:00AM', 'Team coffee');

        $myCalendar -> add('03 Apr 2021', '2:00PM', 'TW Grupa B3');
        $myCalendar -> add('03 Apr 2021', '12:00PM', 'TW Grupa X');
        $myCalendar -> add('03 Apr 2021', '10:00AM', 'TW Grupa B1');

        $myCalendar -> add('02 Apr 2021', '6:00PM', 'Prepare for TW');

        // Get next week's schedule
        $nextWeekSchedule = $myCalendar -> getSchedule('01 Apr 2021', '05 Apr 2021');

        echo '<h1> Next week: </h1> <ul>';
        foreach($nextWeekSchedule as $entry) {
            printEntry($entry);
        };
        echo '</ul>';

        // Get the schedule for Apr 3rd
        $apr3 = $myCalendar -> getSchedule('03 Apr 2021');
        echo '<h1> On 3rd Apr: </h1> <ul>';

        foreach($apr3 as $entry) {
            printEntry($entry);
        };

        function printEntry($entry) {
            echo '<li>
                Date: <strong>'. $entry -> date .'</strong> |
                Time: <strong>'. $entry -> time.'</strong> |
                Description: <strong>'. $entry -> description .'</strong>
            </li>';
        }
    ?>
</body>
</html>

Implement the Calendar class so that the code above runs flawlessly and outputs

THANKS 🙏

iampava.com/tw

PS: check DevDrive over the weekend for practice exercises

MVC pattern

Week #6

MVC is one of the most popular back-end patterns out there, and the one I recommend when building your project. 🔥

Controller(s)

Model(s)

view(s)

👨‍🏭

⭐ this is where all the interaction with our database happens (storing & retrieving data)

⭐ consists of Classes/Objects/Functions  depending on your app

⭐ is passed by the Controller to the View for Rendering

Model

⭐ what the User sees and interacts directly with

⭐ will render part of the model/models

⭐ should only contain very simple logic, like iterating through data and simple if-else

views

⭐ where the logic happens

⭐ it connects the Model with the appropriate View based on the URL

⭐ it also responds to form submit and decides what view to render next

controller

Demo

👉Great video tutorial for MVC in PHP

THANKS 🙏

iampava.com/tw

PS: check DevDrive over the weekend for practice exercises

📅 Week 8 deadline: 11 Apr 2021

Sessions & Database

Week #7

🍪 cookies

&

💾 Sessions

cookies

Information about a user stored on it's computer (in the browser).

Primarily used to track us all over the internet... 😅

View, Edit & Delete Cookies in Browser

<?php
$preferredLang = 'RO';

setcookie("PreferredLanguage", $preferredLang, time() + 3600);
?>

<?php

if(!isset($_COOKIE['PreferredLanguage'])) {
  echo 'No cookie set';
} else if($_COOKIE['PreferredLanguage'] === 'RO') {
	echo 'Salut';
} else {
	echo 'Hello';
}

Setting up a cookie that expires in 1 hour regarding the language preference

Reading the cookie later in a different page

Sessions

Similar to cookies but they store information about a user on the server.

How do they work? 🤔

Sessions

✅ A cookie having a unique ID - called Session ID - is stored on the client (browser)

✅ On the server there's some data attached to that ID

✅ When the user goes back to the server, the cookie is read and thus the data attached to that ID is found and can be accessed

<?php

/**
    START - Persist session for 2 hours,
    even after closing the browser.

    Needs to be called only once, when starting the server.
*/

 $TWO_HOURS = 60 * 60 * 2;
 ini_set('session.cookie_lifetime', $TWO_HOURS);
 ini_set('session.gc_maxlifetime', $TWO_HOURS);

 session_start();

 if(isset($_SESSION['count'])) {
   $_SESSION['count'] ++;
 } else {
   $_SESSION['count'] = 1;
 }

 echo $_SESSION['count'];
?>

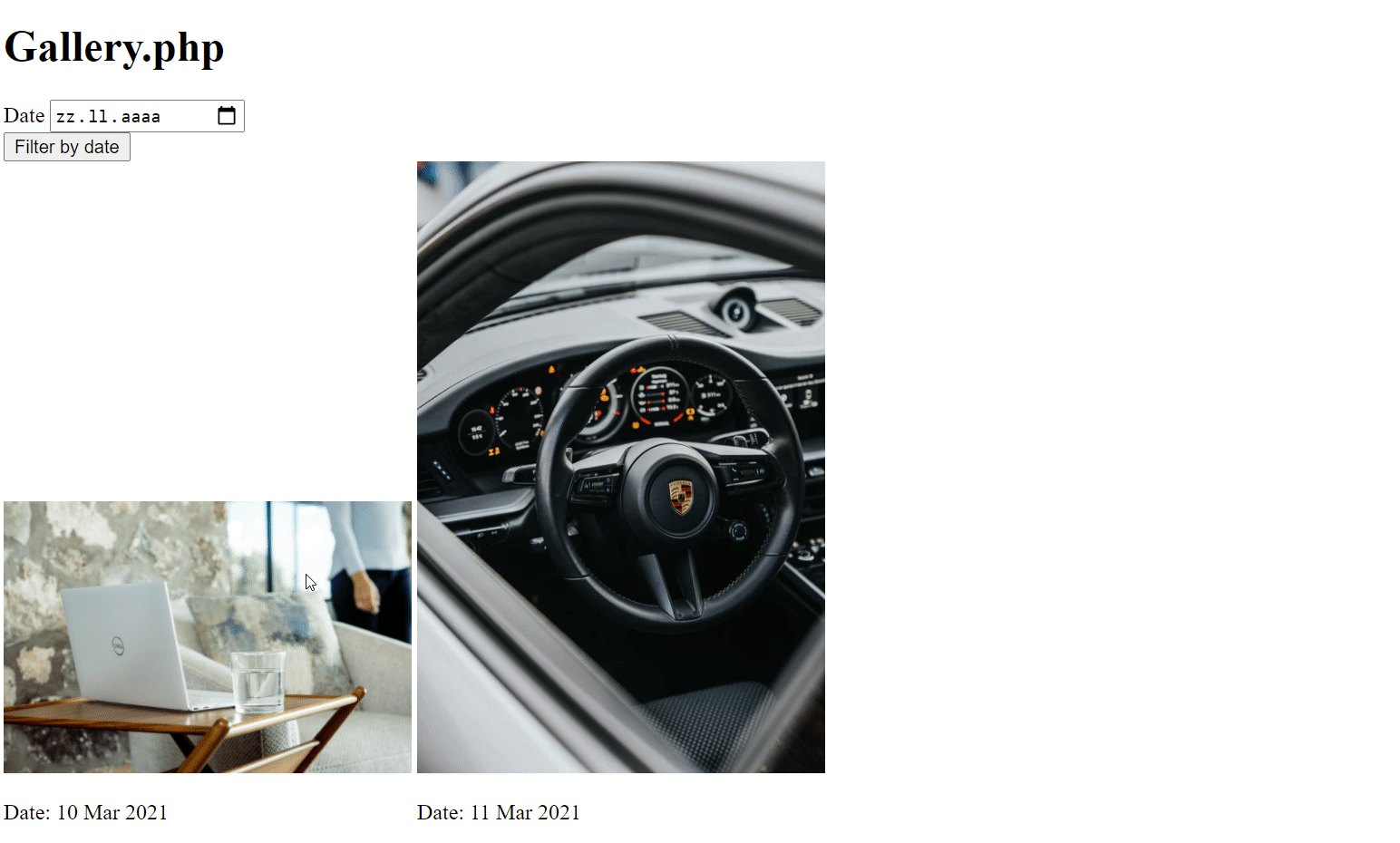

Continuing from our gallery exercise last week, let's add 🍪 Cookies to persist the date

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <title>Gallery.php</title>
    <link rel="stylesheet" href="./gallery.css">
</head>
<body>
    <header>
        <h1> Gallery.php </h1>
    </header>
    <main>
        <form action="." method="POST">
            <div>
                <label for="date">Date </label>
                <input type="date" name="date" id="date" value="<?php
                    if(isset($_POST['submit'])) {
                        echo $_POST['date'];
                    }
                ?>">
            </div>
            <button type="submit" name="submit">Filter by date </button>
        </form>
        <div class="gallery">
            <?php
                $filter = NULL;
                if(isset($_POST['submit'])) {
                    $filter = $_POST['date'];
                }

                $images = json_decode(file_get_contents('./gallery.json'));
                foreach($images as $i) {
                    if(!$filter || strtotime($i -> date) === strtotime($_POST['date'])) {
                        echo '
                        <div>
                            <img src="'. $i -> src .'" alt="'. $i -> description.'" >
                            <p>Date: '. $i -> date .' </p>
                        </div>
                    ';
                    }
                }
            ?>

        </div>
    </main>
</body>
</html>

[
  {
    "src": "https://images.unsplash.com/photo-1593642532009-6ba71e22f468?ixid=MXwxMjA3fDF8MHxwaG90by1wYWdlfHx8fGVufDB8fHw%3D&ixlib=rb-1.2.1&auto=format&fit=crop&w=1350&q=80",
    "description": "Laptop",
    "date": "10 Mar 2021"
  },
  {
    "src": "https://images.unsplash.com/photo-1615125468484-088e3dfcabb6?ixid=MXwxMjA3fDB8MHxlZGl0b3JpYWwtZmVlZHw3fHx8ZW58MHx8fA%3D%3D&ixlib=rb-1.2.1&auto=format&fit=crop&w=500&q=60",
    "description": "Car",
    "date": "11 Mar 2021"
  }
]

gallery.json

index.html

Implement a simplistic user login using Sessions

read user credentials from a JSON file
persist user ID in Session

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>User login</title>
</head>
<body>
    <form method="POST" action="">
        <label>
            <span> Username </span>
            <input type="text" name="username" required />
        </label>
        <label>
            <span> Password </span>
            <input type="password" name="password" required />
        </label>
        <button type="submit">Login</button>
    </form>
</body>
</html>

<?php
  $CONFIG = [
    'servername' => "localhost",
    'username' => "root",
    'password' => '',
    'db' => 'test'
  ];

  $conn = new mysqli($CONFIG["servername"], $CONFIG["username"], $CONFIG["password"], $CONFIG["db"]);

  if ($conn->connect_error) {
    die("Connection failed: " . $conn->connect_error);
  } else {
    echo "Successfully connected to DB";
  }
?>

Sql + xampp = ❤

👇 Connecting to a MySQL database 👇

We're using Prepared Statement to prevent this 👇

query'ing the db

inserting data

<?php
 $username = "Bob";
 $pass = "12345";

 $insertStatement = $conn -> prepare("INSERT INTO users VALUES(?, ?)");
 $insertStatement -> bind_param("ss", $username, $pass);

 $insertStatement -> execute();
 $insertStatement -> close();
?>

<?php
  $getUsersStatement = $conn -> prepare("SELECT * FROM users WHERE username = ?");
  $getUsersStatement -> bind_param("s", $username);
  $getUsersStatement -> execute();

  $users = $getUsersStatement -> get_result();

  foreach($users as $row) {
      echo $row['username'];
      echo ' -- ';
      echo $row['password'];
      echo '<br/>';
  }
?>

retrieving data

<?php
  $countUsersStatement = $conn -> prepare("SELECT COUNT(username) FROM users");
  $countUsersStatement -> execute();

  $row = $countUsersStatement -> get_result() -> fetch_row();
  echo "We have " . $row[0] . " rows";
?>

Let's use the same Gallery exercise as before and instead of a JSON file, let's use an SQL Database

THANKS 🙏

iampava.com/tw

PS: check DevDrive over the weekend for practice exercises

User authentication

Week #9

There are multiple methods for Authentication suitable in different scenarios

✔ APP Authentication

✔ API Authentication

✔ "on my behalf" authentication

API Key

Session Cookies

JWT

OAuth

👨‍💻 DIY

Identity Management Solutions (eg: Auth0)

Let's DIY so we get a peak behind the "curtain"

Let's use Sessions/Cookies for automatic transfer to the server

After login, let's store in Session the username and hashed password.

When re-visiting the page, read the credentials and if they're a match, "log in" user

<!DOCTYPE html>
<html lang="en">

<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <link rel="stylesheet" href="./app.css" />
  <title>Home page</title>
</head>

<body class="home-page">
  <header>
    <h1> Home Page </h1>
  </header>


  <main>
    <form method="" action="">
      <label>
        <span> Username*</span>
        <input required type="text" name="username">
      </label>
      <label>
        <span> Password*</span>
        <input required type="password" name="password">
      </label>
      <button type="submit">
        Sign in
      </button>
    </form>
  </main>
</body>

</html>

body {
  margin: 0;
  padding: 0;
  font-family: sans-serif;
}

body * {
  font-family: inherit;
}

h1 {
  font-size: 4em;
}

h2 {
  font-size: 3em;
}

h3 {
  font-size: 2.5em;
}

a {
  font-size: 1.5em;
  text-decoration: none;
  font-family: inherit;
  border-bottom: 2px solid currentColor;
  color: rgb(3, 169, 244);
  font-weight: bold;
}

header {
  position: relative;
  color: #fff;
  text-align: center;
  padding: 0.5em 0;
  background: rgb(3, 169, 244);
}

header h1 {
  margin: 0;
}

header a {
  color: #000;
  position: absolute;
  top: 50%;
  transform: translateY(-50%);
  left: 2em;
}
.home-page main {
  display: flex;
  margin-top: 10em;
  flex-flow: row wrap;
  justify-content: space-around;
}

.home-page img {
  max-width: 10em;
}

.home-page main a {
  text-align: center;
}

/* Product page */

.product-page main {
  display: flex;
  align-items: center;
  flex-flow: row nowrap;
  justify-content: space-around;
  min-height: calc(100vh - 7em);
}

.product-page img {
  max-width: 50%;
  max-height: 50vh;
}

.not-found-page {
  text-align: center;
  padding: 0 3em;
  min-height: 100vh;
  display: flex;
  align-items: center;
  justify-content: center;
}

.not-found-page h1 {
  margin-top: 0;
}

.not-found-page a {
  margin-top: 2em;
}

.not-found-page h3 {
  font-weight: normal;
}

label {
    margin: 2em 0;
    display: block;
}

label > span {
  display: block;
  font-weight: bold;
}

input {
    padding: 0.5em;
    border-radius: 0.5em;
}

Starting code 👇

Let's implement the same authentication into an MVC app

THANKS 🙏

iampava.com/tw

PS: check DevDrive over the weekend for practice exercises

DOM

Week #10

Document OBJECT MODEL

The DOM is a tree-like structure representing an XML document.

Most often though, you'll hear about it in the context of HTML but it applies to any XML document.

The DOM provides us with an API (functions) through which we'll interact with it. And since it's a standard, those functions are the same in any programming language.

<?php

$dom = new DOMDocument();

$p = $dom -> createElement('p');
$p -> textContent = 'I am a paragraph';

$img = $dom -> createElement('img');
$img -> setAttribute('src', 'https://www.info.uaic.ro/wp-content/uploads/2019/05/cropped-engl-100x600v2.png');
$img -> setAttribute('alt', 'UAIC logo');

$p -> appendChild($img);
$dom -> appendChild($p);

echo $dom -> saveXML();

PHP example of using DOM

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <title>DOM</title>
</head>

<body>
    <script>
        var p = document.createElement('p');
        p.textContent = 'I am a paragraph';

        var img = document.createElement('img');
        img.setAttribute('src', 'https://www.info.uaic.ro/wp-content/uploads/2019/05/cropped-engl-100x600v2.png');
        img.setAttribute('alt', 'UAIC logo');

        p.appendChild(img);
        document.body.appendChild(p);
    </script>
</body>

</html>

JS example of using DOM

😍See, the exact same functions!

Write a simple crawling app which retrieves an URL and displays an information card with the title, description and cover image of that page, similar to how social-networks display links you share.

Demo here

💡 Hints:

use the built-in file_get_contents function to retrieve the HTML as a string
use DOMDocument and loadHTML, getElementsByTagName, getAttribute functions to parse & find the elements you need
for title ➡ search for the <title> tag & retrieve it's textContent
for description ➡ search for a <meta name="description"> tag & retrieve it's content attribute
for cover image ➡ search for a <meta property="og:image"> tag & retrieve it's content attribute. If it doesn't exist, find the first <img> tag in the page and return that image.

CRAWLING VIA DOM

THANKS 🙏

iampava.com/tw

PS: check DevDrive over the weekend for practice exercises

soap web servics

Week #11

A Web service is a software system designed to support machine-to-machine interaction over a network.

Web Services are similar to real-life services.

For example: we have Food Delivery Services so that we don't have to drive to the store. Similarly, OpenWeatherMap offers weather information, or AWS S3 offers a Storage Service.

😍 What I love about Web Services is that you can combine them and create brand new products.

These types of products are called "mash-ups".

⭐ Maps Service

⭐ Weather Service

}

show realtime weather information on the Map so you can plan your trip

When creating a Web Service it is recommended to follow a set of patterns & best practices.

There are 2 main approaches SOAP & REST. We'll be talking with both in the following time.

SOAP (Simple Object access protocol)

⭐it can be adapted to any communication protocol, not just HTTP

⭐the functionality provided by the Service (including data types) is described in WSDL

<?xml version="1.0"?>
<soap:Envelope xmlns:soap="http://www.w3.org/2003/05/soap-envelope">
    <soap:Header> </soap:Header>
    <soap:Body>
        <m:GetStockPrice xmlns:m="http://www.example.org/stock/Surya">
        <m:StockName>IBM</m:StockName>
        </m:GetStockPrice>
    </soap:Body>
</soap:Envelope>

⭐transfered information (for both request and response) must be in XML format and should respect a standard format of Envelope, Headers and Body

http://www.dneonline.com/calculator.asmx?WSDL

Using WSDL to describe the service 👇

PHP already has two utility classes SoapServer and SoapClient for easily building and talking to SOAP Services.

Here's a demo of using them to build a dummy Game of Thrones Service (no spoilers 😅)

<?php

$client = new SoapClient(NULL, [
    "location" => "http://localhost:8080/got-service.php",
    "uri" => "http://got-soap-service.com"
]);

// var_dump($client -> __getFunctions());
// var_dump($client -> __getTypes());

echo $client -> getEpisodesCount() . "<br/>";

$episode = $client -> getSynopsis(62);
echo $episode -> name . ": " . $episode -> description;

Client

<?php

$service = new SoapServer(NULL, [
    "uri" => "http://got-soap-service.com"
]);


class Episode {
    public $name;
    public $description;

    public function __construct($name, $description)
    {
        $this -> name = $name;
        $this -> description = $description;
    }
}

class GotService
{
    public function getSynopsis($episodeNo)
    {
        if ($episodeNo === 62) {
            return new Episode(
                "Battle of the bastards",
                "Fight between good and evil!"
            );
        }

        return null;
    }

    public function getEpisodesCount()
    {
        return 73;
    }
}

$service->setObject(new GotService());
$service->handle();

Server

We haven't used Headers yet so let's modify our example by adding authentication

⭐the Client will need to send a header named CustomAuthHeader with two propertis: username & pass

⭐the Server will read this header and only allow access to the getSynopsis function if the credentials match

<?php

$client = new SoapClient(NULL, [
    "location" => "http://localhost:8080/got-service.php",
    "uri" => "http://got-soap-service.com"
]);

// var_dump($client -> __getFunctions());
// var_dump($client -> __getTypes());

class CustomAuthHeader
{
    public $username;
    public $pass;

    public function __construct()
    {
        $this->username = "bob";
        $this->pass = "1234";
    }
}

$header = new SoapHeader(
    "http://got-soap-service.header.com",
    "CustomAuthHeader",
    new CustomAuthHeader()
);

$episode = $client->__soapCall("getSynopsis", [
    [
        "seasonNo" => 6,
        "episodeNo" => 3
    ]
], NULL, [$header]);

echo $episode -> name . ": " . $episode -> description;

Client

<?php

$service = new SoapServer(NULL, [
    "uri" => "http://got-soap-service.com"
]);

class Episode {
    public $name;
    public $description;

    public function __construct($name, $description)
    {
        $this -> name = $name;
        $this -> description = $description;
    }
}

class GotService
{
    private $isAuthenticated = false;

    public function CustomAuthHeader($header)
    {
        if (
            $header->username === "bob" &&
            $header->pass === "1234"
        ) {
            $this->isAuthenticated = true;
        }
    }

    public function getSynopsis($args)
    {
        if (!$this->isAuthenticated) {
            throw new Error("Must be authenticated!");
        }

        if ($args['seasonNo'] === 6 && $args['episodeNo'] === 3) {
            return new Episode(
                "Battle of the bastards",
                "Fight between good and evil!"
            );
        }

        return null;
    }

    public function getEpisodesCount()
    {
        return 73;
    }
}

$service->setObject(new GotService());
$service->handle();

Server

Implement a Calendar Meetings Service for your company using SOAP. You have one or more rooms and in each room can be only one meeting at the same time.

The Service should offer the following functions:

getAllMeetings() ➡ which returns an array of `Meeting`
getMeetingsInRoom($roomName) ➡ which returns an array of `Meeting` regarding that room
bookMeeting($roomName, $startTime, $duration) ➡ add a new meeting in that room, if possible. Will return the unique id of this meeting.

We want the bookMeeting function to only be accessed by authorized users, so implement a mock authentication using SoapHeader.

SOAP Calendar Service

THANKS 🙏

iampava.com/tw

PS: check DevDrive over the weekend for practice exercises

REST

web services

Week #12

ful

REpresentational
State Transfer

REST

The computational results are actually resource representations

1

each resource representation has an associated URL

2

clients interact with those resources via http verbs

3

🔗 https://httpstatusdogs.com/

https://demo.app/v3/users

https://demo.app/v3/users/iampava

GET

{
  "users": [{
    "username": "iampava",
    "avatar": "https://demo.app/avatar.png"
  }]
}

{
  "username": "iampava",
  "avatar": "https://demo.app/avatar.png"
}

📄 Accept: application/json

⬅

➡

https://demo.app/v3/users/iampava/settings

PUT

{
  "theme": "light-gray",
  "notifications": false
}

➡

⬅ 201

⬅ 401

⬅ 403

...

https://demo.app/v3/users/

Post

➡

⬅

{
  "username": "iampava",
  "avatar": "https://demo.app/avatar.png"
}

{
  "username": "iampava",
  "avatar": "https://demo.app/avatar.png",
  "id": 1234
}

https://demo.app/v3/users/1234

delete

⬅ 200

⬅ 401

⬅ 404

...

Idempotency

When designing REST APIs, the GET, PUT and DELETE methods must be idempotent

multiple identical requests have the same effect as a single one

Idempotency in cron jobs*

Apart from REST APIs, idempotency is a valuable practice when building cron-jobs

eg: when building weekly jobs that notifies users via Email, it's critical to make it idempotent, in case a bug gets it to trigger twice

📄 let's read the docs of a real rest api

🔗 Chuck Norris API

🔗 Dog Ceo API

Install PostMan

Live code in PHP

1. I LIVE CODE

<?php
    // echo "hello! from api";


    $requestUri = $_SERVER["REQUEST_URI"];
    $requestMethod = $_SERVER["REQUEST_METHOD"];

    $response = [
        "uri" => $requestUri,
        "method" => $requestMethod
    ];

    // ✅-> URL
    // ✅ -> method (GET, POST, PUT, etc?)
    // ✅ -> payload (body) | if any?
    // -> headers

    $bodyString = file_get_contents("php://input");
    if ($bodyString) {
        $response["body"] = json_decode($bodyString);
    } else {
        $response["body"] = "N/A";
    }

    $allHeaders = getallheaders();
    if (isset($allHeaders["Accept"])) {

        if ($allHeaders["Accept"] == "text/plain") {
            echo "Text plain: ". $response["uri"] . "," . $response["method"];
            header("Content-Type: text/plain");
        } else  if($allHeaders["Accept"] == "text/html") {
            echo "<html><body>Text plain: ". $response["uri"] . "," . $response["method"]."</body></html>";
            header("Content-Type: text/html");
        } else {
            echo json_encode($response);
            header("Content-Type: application/json");
        }

    } else {
        echo json_encode($response);
        header("Content-Type: application/json");
    }


    http_response_code(401);

    // ✅ <- status code
    // ✅ <- headers
    // ✅ <- body

2. WE LIVE CODE

/got_api/key

GET

{
  "key": "ZO5zFDWk"
}

⬅

Retrieve a secret key which allows you to call this API 5 times.

/got_api/season/${s_no}/episode/${e_no}

PUT

📄 Authorization: Bearer {secret_key}

➡

Add details to that episode

{
  "title": "Battle of the bastards",
  "length": 61
}

⬅ 201

⬅ 400

⬅ 401

/got_api/season/${s_no}/episode/${e_no}

GET

📄 Authorization: Bearer {secret_key}

➡

Get details about an episode in the requested format

⬅ 200

⬅ 401

⬅ 404

📄 Accept: application/json || text/html

➡

THANKS 🙏

iampava.com/tw

PS: check DevDrive over the weekend for practice exercises

AJAX

Week #13

Before AJAX we were stuck to this 👇

Fat
Server

Thin
Client

But now, we have a choice between 👆 and 👇

Thin
Server

Fat
Client

Or variations in between *

Promises

DOM Manipulation

today's focus

I code

Let's ask for a Chuck Norris joke and add it to a simple HTML page.

🔗 https://api.chucknorris.io/

<!DOCTYPE html>
<html lang="en">
<head> <title>Chuck Norris API</title> </head>
<body>
    <button id="refreshBtn" type="button">Refresh Joke</button>
    <script>
        let body = document.querySelector('body');
        let btnEl = document.getElementById('refreshBtn');

        btnEl.addEventListener('click', () => {
            btnEl.disabled = true;

            fetch('https://api.chucknorris.io/jokes/random', {
                method: 'GET'
            })
            .then(resp => resp.json())
            .then(jsonResp => {
                const p = document.createElement('p');
                p.innerText = jsonResp.value;

                body.appendChild(p);
                btnEl.disabled = false;
            })
            .catch(err => {
                alert(err);
                btnEl.disabled = false;
            });
        });
    </script>
</body>
</html>

You code #1

Let's ask for all joke categories and print them as a list of buttons
Let's append a new joke from that category when we click it!

🔗 https://api.chucknorris.io/

BONUS

Let's turn the buttons into radios & add a text input to free search for jokes in that category.

🔗 https://api.chucknorris.io/

THANKS! 🙏

iampava.com/web-technologies

fin.

Week #14

evaluation logistics

📅 9 - 11 June

⌚ 09:00 - 15:00

In case you won't finish the project and don't want to present it during the normal evaluation, let me know. *

⌛ detailed timetabled soon

checklist

✔ Fully implemented and functional app

✔ Detailed application architecture (via diagrams, drawings, relevant code snippets etc) in scholarly format

*Make sure you have submitted all your code in GitHub, on the master/main branch

✔ User guide, in scholarly format as well

✔ APIs Documentation (Swagger) - if you need to build APIs

✔ Demo movie - for M class projects

✔ Responsive & valid HTML pages

✔ At least one AJAX call

Project Questions/feedback?

good luck working on the projects 🙏

iampava.com/web-technologies

Web

Technologies 2021

👨‍🎓👩‍🎓

🔥 TW 🔥

{

By the end of the course you:

in order to make the most out of this:

Tools

🔗 devdrive.io

😎 An open platform

🔨 for building apps, games & awesomeness

🔗 Shareable with just a link

The Web

{ DEMO }

client ↔ server

let's inspect the network traffic of a public website

HTML ▶

Elements/tags

structure of any html page

HEAD

body

Let's code!

html best practices

Any other best practices you'd like to share?

Let's code!

#1

#2

#3

THANKS 🙏

💔 css 💖

To be honest...

sometimes css is a pain in the a**

but it can also be 😍

First things first!

units

Where do we put it?

#1 inline

👎 Avoid this at all* times

#2 same file

👎 Avoid this at all* times

#3 External

👍 Do this at all* times

Based on device

everything is a box (rect)

Elements Tab / DEMO

Display

block

inline-block

inline

FLEX

Position

Static

absolute

relative

fixed

Sticky

{ DEMO }

⭐ position

⭐ width

⭐ height

⭐ border

Use only those props:

⭐ top/right/bottom/left

#0

#1

#2

#3

TEXT

#4

#5

THANKS 🙏

css #2

FLEX ❤

most common props

{ DEMO }

🐸 FLEXBOX FROGGY

Selectors

by tag

by class

by id
